In-house designed display to upgrade Turbo Levo / Levo SL / Kenevo / Vado SL / Creo SL to see the most important driving data. The display is connected to the bike via ANT + (from model year 2019 with the TCU). It is compatible with MY16-18 Levo / Kenevo (connection via battery) and can be updated via Bluetooth with the Mission Control App 2.0 from a later point in time.

Wireless connection via ANT + and Bluetooth

5 freely programmable screen pages, permanent display of e-bike information such as battery charge level and support mode, suitable for all Garmin Edge mounts!

Functions:

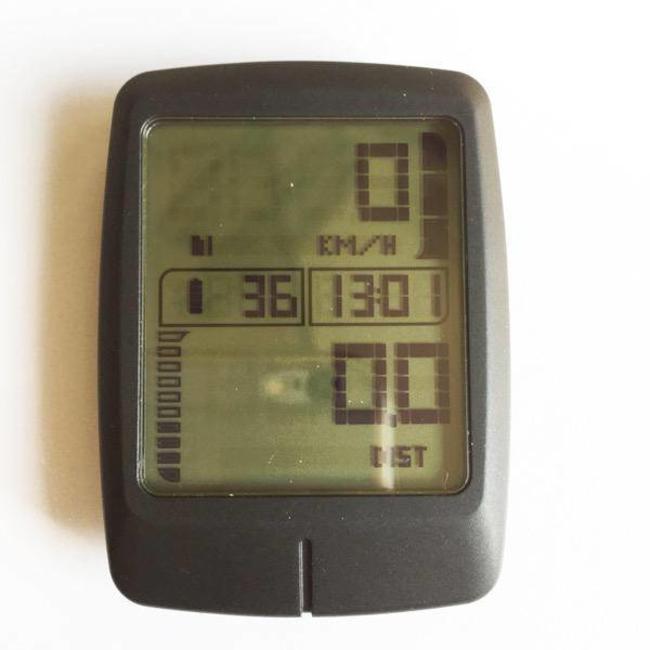

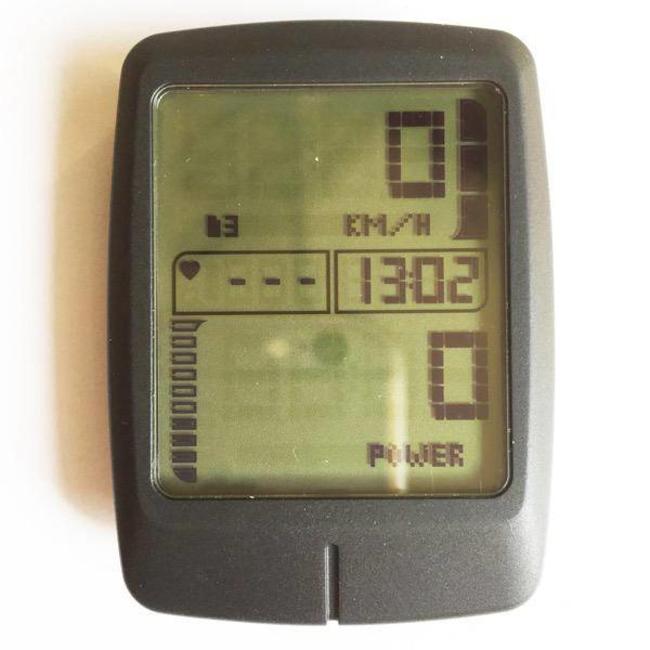

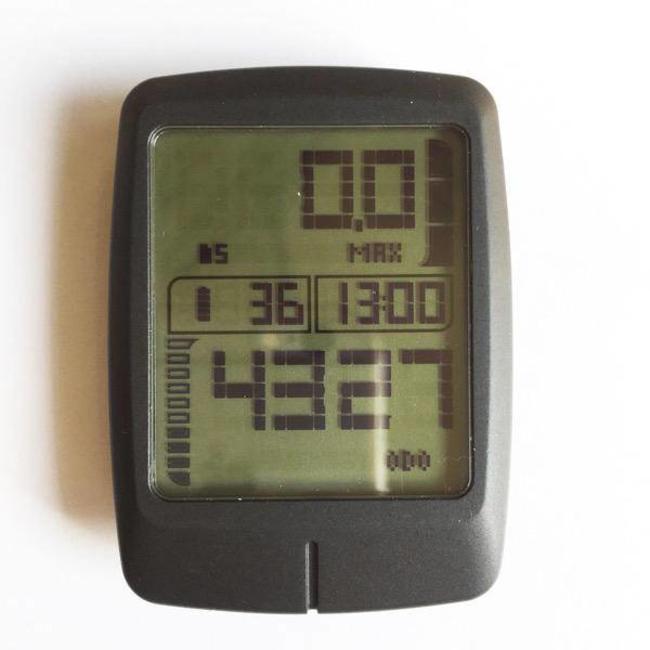

• Monochrome LCD display (black and white)
• Screen size: 40 mm high, 35 mm wide, 52 mm diagonal (2 “display)
• ANT + and Bluetooth for communication

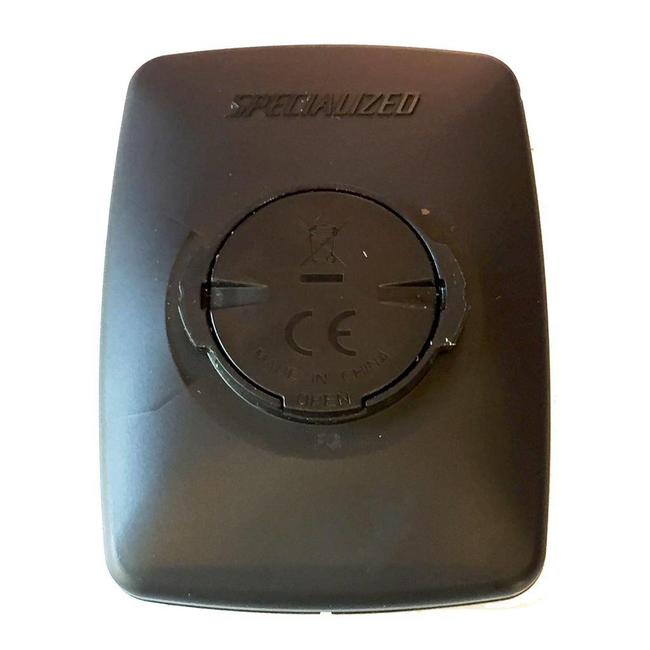

• Sits centrally on the handlebar at the stem; Twistlock with an optional anti-theft lock (bracket is attached to the mounting plate from below to secure the display)
• Twistlock can be turned on the handlebar (display also fits on other popular mounts)
• The 3 mm hexagon socket screw can be easily reached from the front
• Degree of protection IPX7 (suitable for splashes, rain or snow); passed the official test

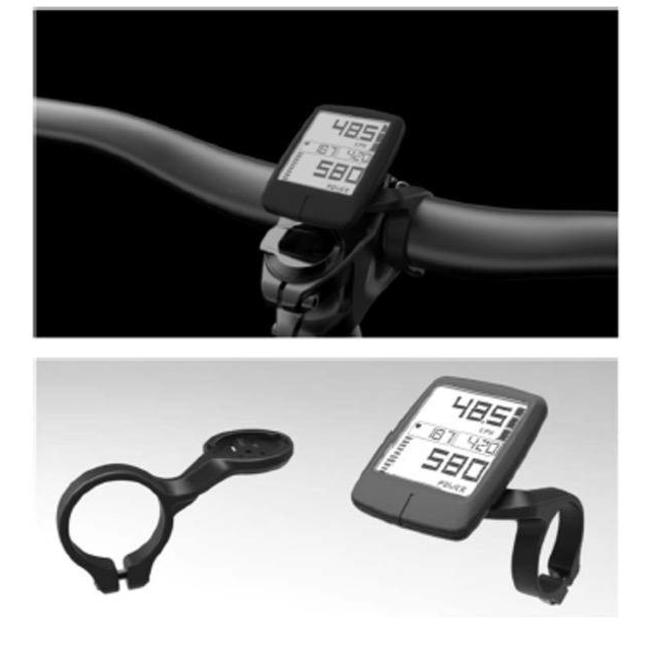

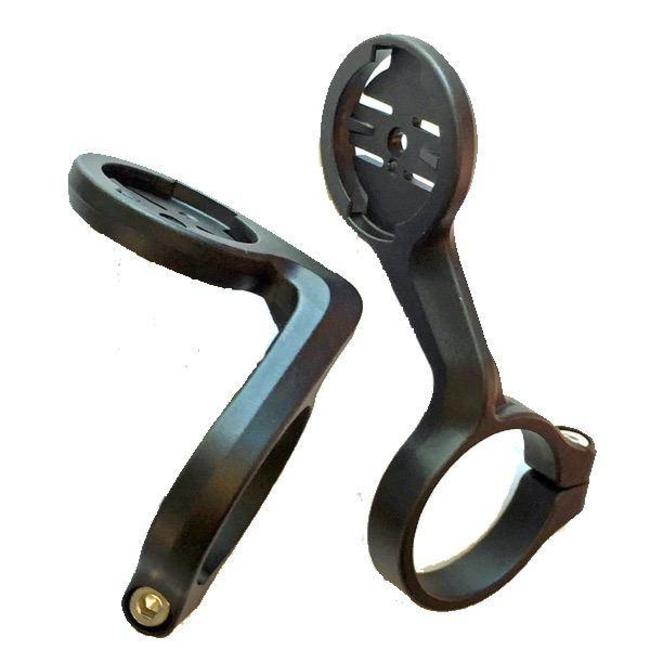

• Two brackets (long and short shafts) are compatible with Garmin devices
• 5 pages that can be personalized
• Chest strap for measuring heart rate can be coupled

Scope of delivery:

Display, a short bracket over the stem, a long bracket in front of the stem, instruction manual.

TCD instruction manual
