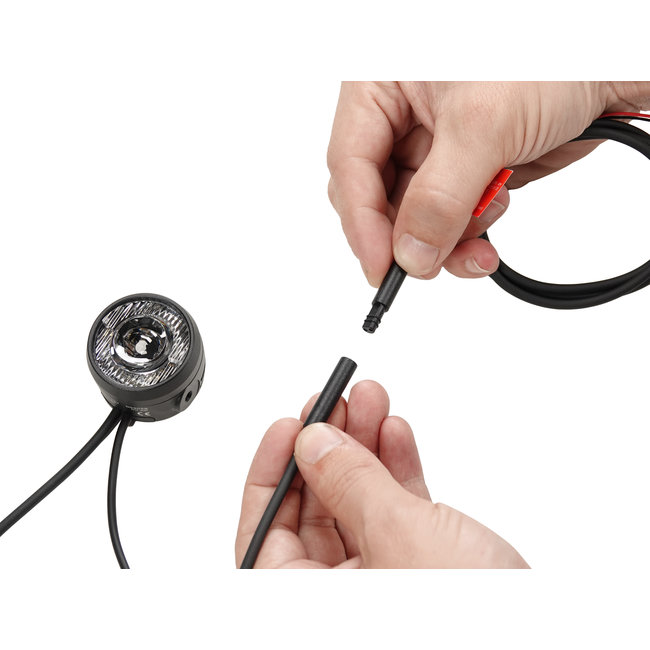

New version! Comes with a plug connection on the light cable. The lamp head can easily be removed if necessary, the rest of the cable remains sealed in the frame, e.g. when racing or in the summer season. Very nice from Lupine!

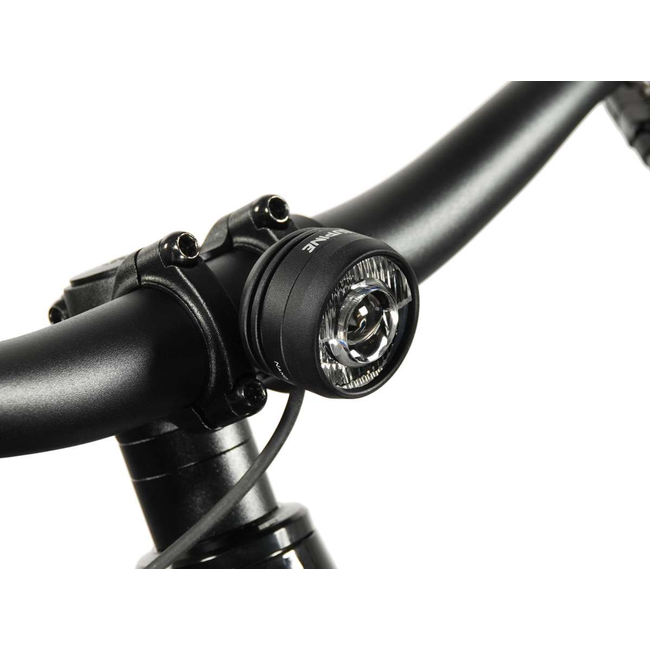

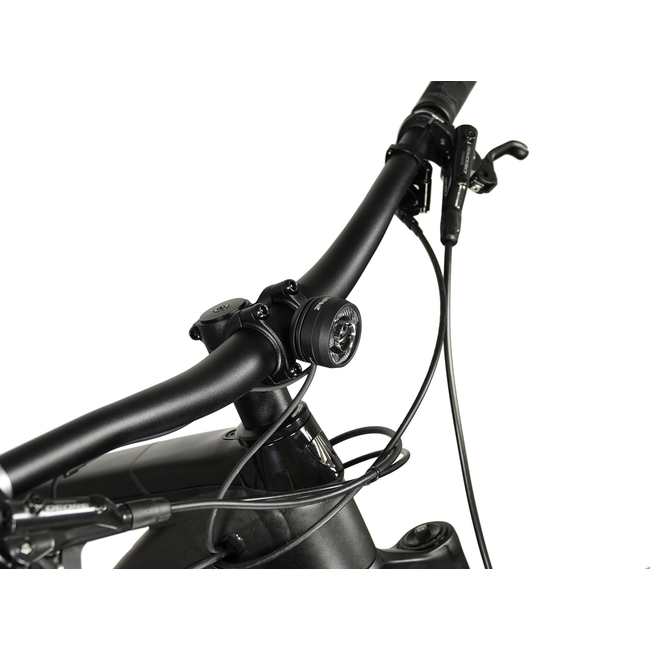

Front lamp approved for Specialized Levo / Levo SL with 600 lumens low beam and 900 lumens high beam! Only 52 grams! 35mm handlebar clamp!

Please also order light cable extension d3395 with Brose plug connection!

Suitable for all Specialized Turbo models:

• Levo G1 2016/2017/218 / Kenevo G1 2018/2019
• Levo G2 2019/2020/2021 / Kenevo 2020/2021/2022
• Levo G3 2022
• Levo SL / Kenevo SL / Como SL / Vado SL

Mounting types:

Levo G1 / G2 / G3: Lupine lamp with plug connection is extended with d3395 light cable with plug connection and connected directly to the motor.

Creo SL / Levo SL / Kenevo SL: Lupine lamp with plug connection is extended with d3395 light cable with plug connection and connected to S216800001 Specialized Y splitter cable with plug sockets.

Alternatively, if the plug connection to the lamp on the SL system is undesirable, cut the plug on the lamp cable and connect the cable directly to the SL system with the S216800001 splitter cable.

Lupine Compatibility List

StVZO approval yes (~ K1797)

• Material6061-T6 aluminum, CNC milled
• Weight52g
• Dimensions (ØxL) 41 x 30mm
• Recommended for e-bikes: Specialized / Bosch / Brose / Shimano / Yamaha
• Protection classIP 68 / IK09
• Power14W
• Input voltage 6 - 12V (DC)
• Features 2W daytime running lights, 8W low beam, 14W high beam
• Lens Fresnel - free form lens
• Light source 2x Osram Compact PL
• Connection cable strands
• Colors black
• Lux130lx
